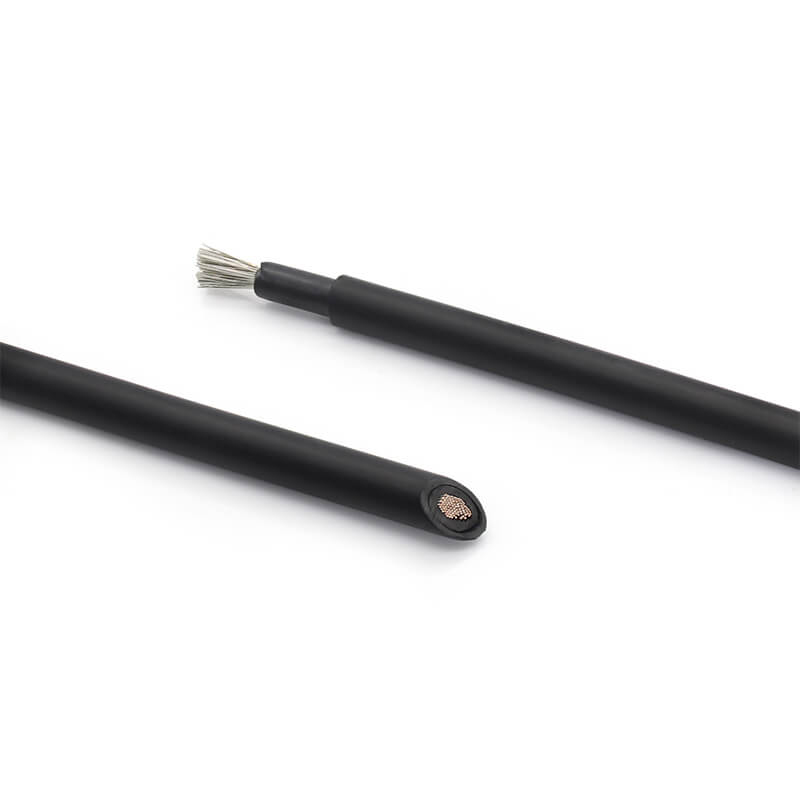

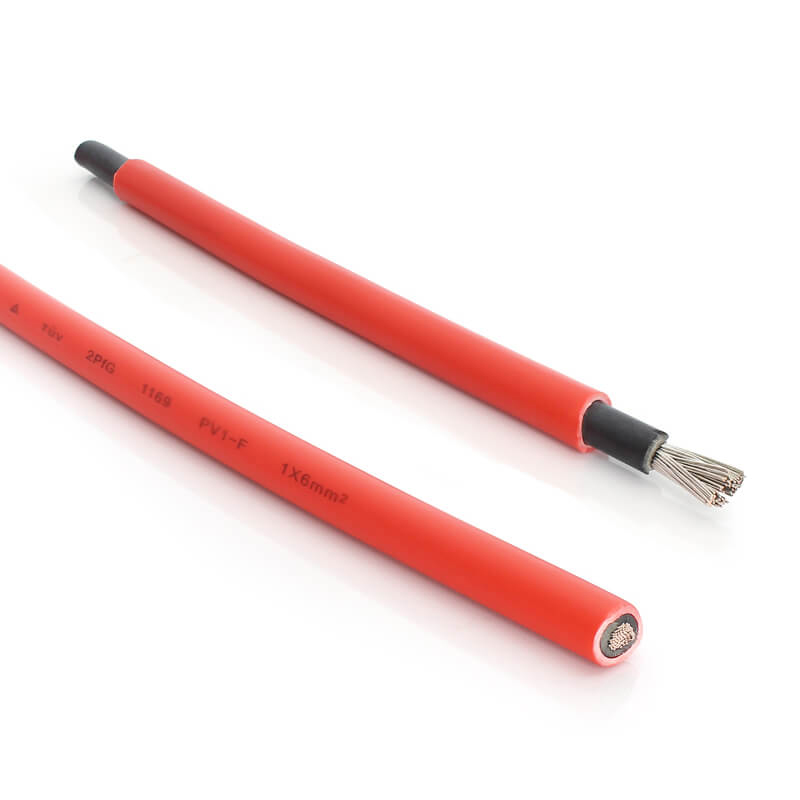

Solar Cable (Tinned Copper)
KEY PRODUCT FEATURES
| ⚫Size:4mm ,6mm and more |
| ⚫Double insulation, electron-beam cross linked cables for photovoltaic power station |
| ⚫ Conductor: Tinned copper,according to the VDE 0295/IEC 60228,Class5 |
| ⚫ Insulation: Polyolefin copolymer electron-beam cross-linked |

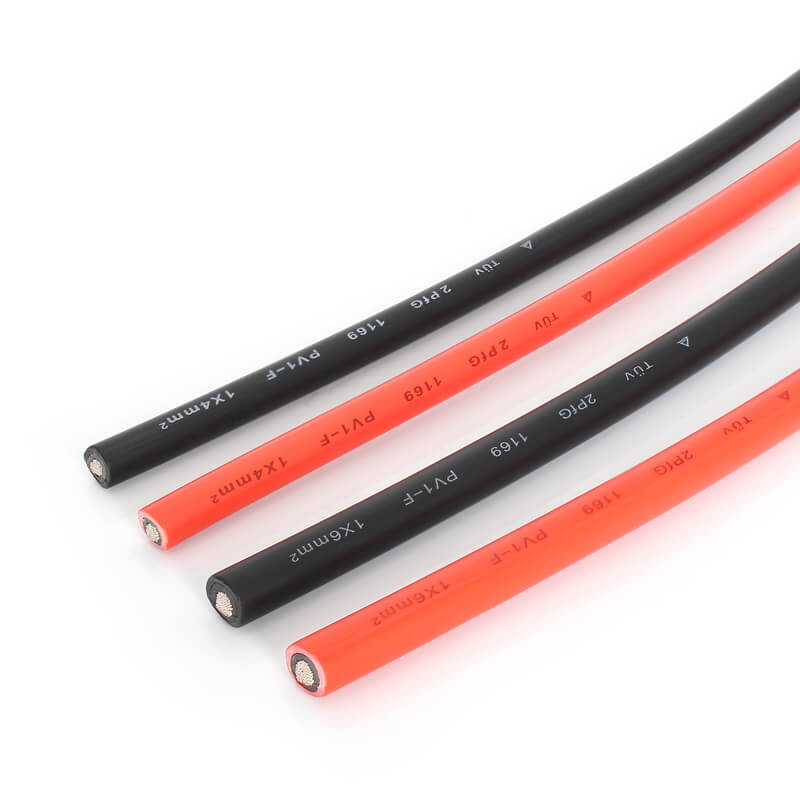

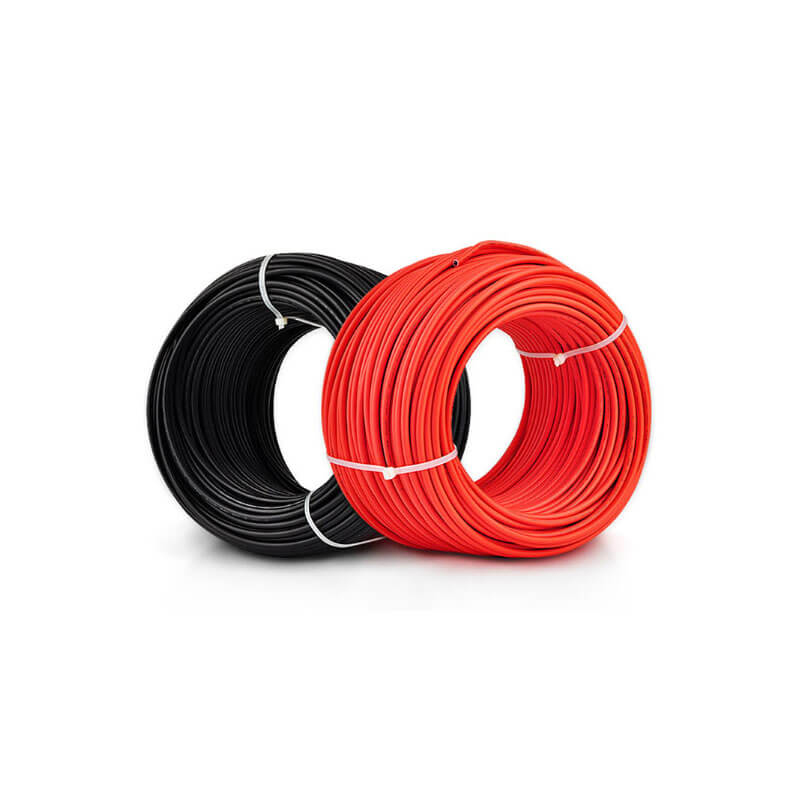

| ⚫ Sheath color: Black/Red or as per customer’s requeit |
Technical Specification:
Nominal Voltage: Uo/U=600/1000VAC,1000/1800VDC
Test Voltage: 6500V, 50Hz, 5Min.
Temperature Rating: 45°C upto +125°C; -40°F upto +257°F
Ambient temperature: 25 year (TUV); -40°C upto +90°C ; -40°F upto +194°F
Max.Short circuit temperature: 28°C, +536°F
Bending Radius: Fixed installation > 4X ; Occasionally moved > 5X
Advantages
Electron-beam cross-linked compounds
UV, ozone and hydrolysis resistant
High temperature resistant,the materials do not melt or flow
Good cold flexibility
Very long service life > 25 years at 90°C
Compatible to all popular connectors
