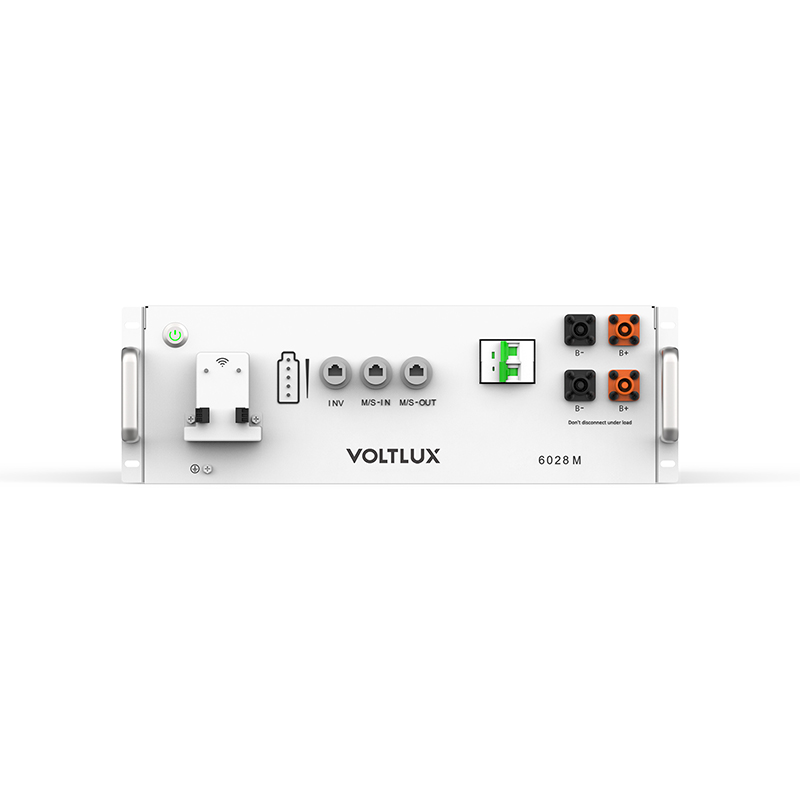

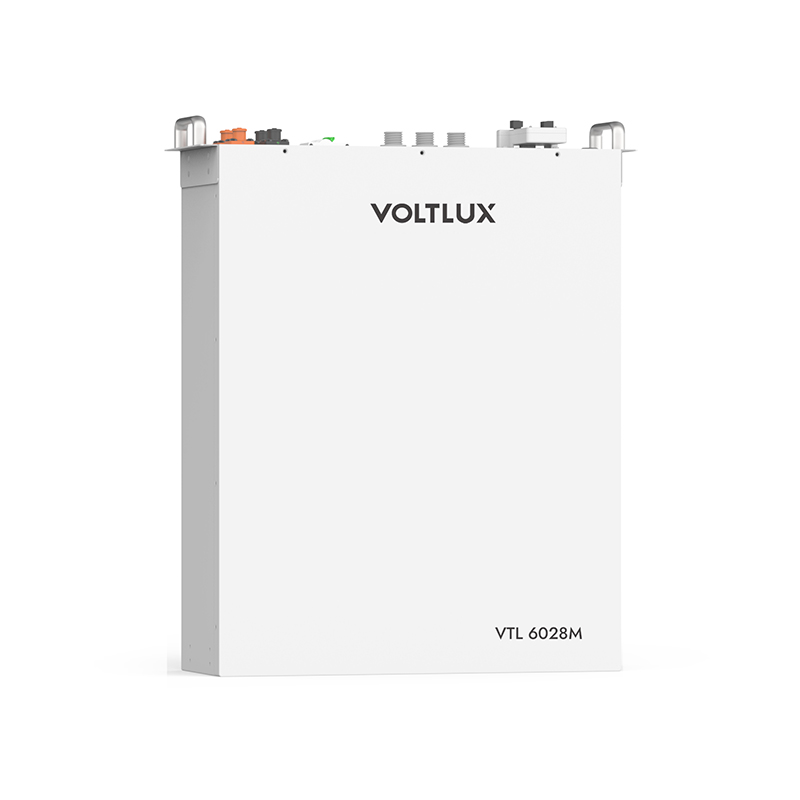

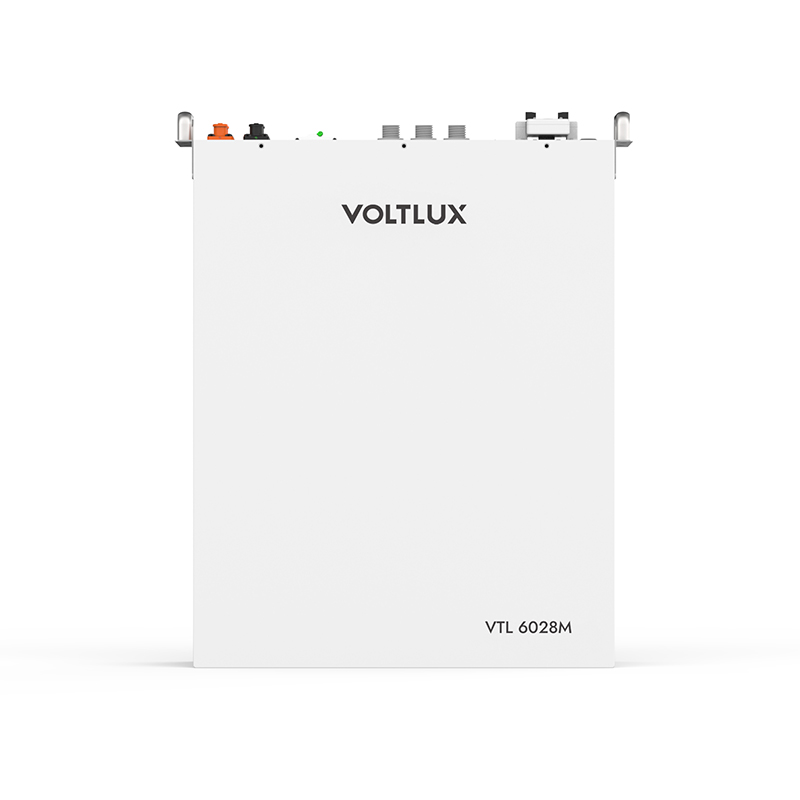

6kWh LV LiFePO4 Battery
KEY PRODUCT FEATURES
| ⚫ The whole battery pack is non-toxic, pollution-free and environmentally friendly |
| ⚫ The anode material is LiFePO4 Cells, which has good safety performance and long cycle life |
| ⚫ Battery management battery pack (BMS) has over discharge protection, over charge protection, over current protection, high/low temperature protections |
| ⚫The battery pack can automatically manage charging and discharging states and balance the current and voltage of each battery |
| ⚫ The battery pack is pre-wired and has gone through factory test, so quick installation is available. |
Product Introduction:
⚫Cycle Life@25°C ;10000
⚫Capacity 6028 Wh
⚫Usable Energy (DC):5.43kWh
⚫Normal Dis-/Charge Power:3.0kW
⚫Peak discharging Current :150A for 2s
⚫Operator Voltage Range 44.8-57.6V.dc
⚫Nominal Voltage：48Vd.c(Boost 19.2 to 48V)
⚫Max.Charge Voltage:57.6Vd.c
⚫Nominal Current: 60A
⚫Parallel Connection 16 units
⚫Max Recommended DOD (Capacity):90%
