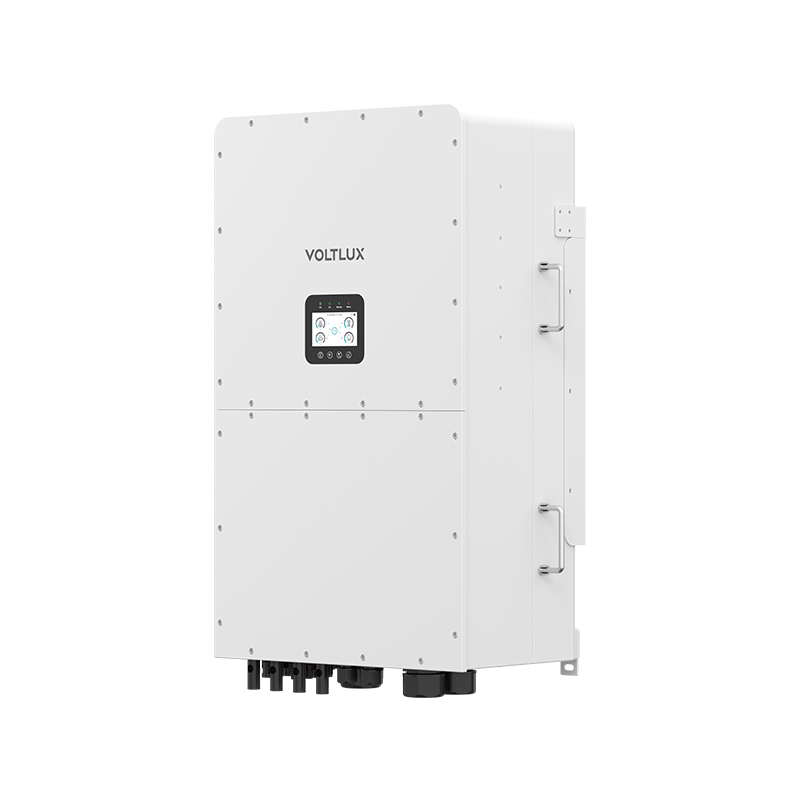

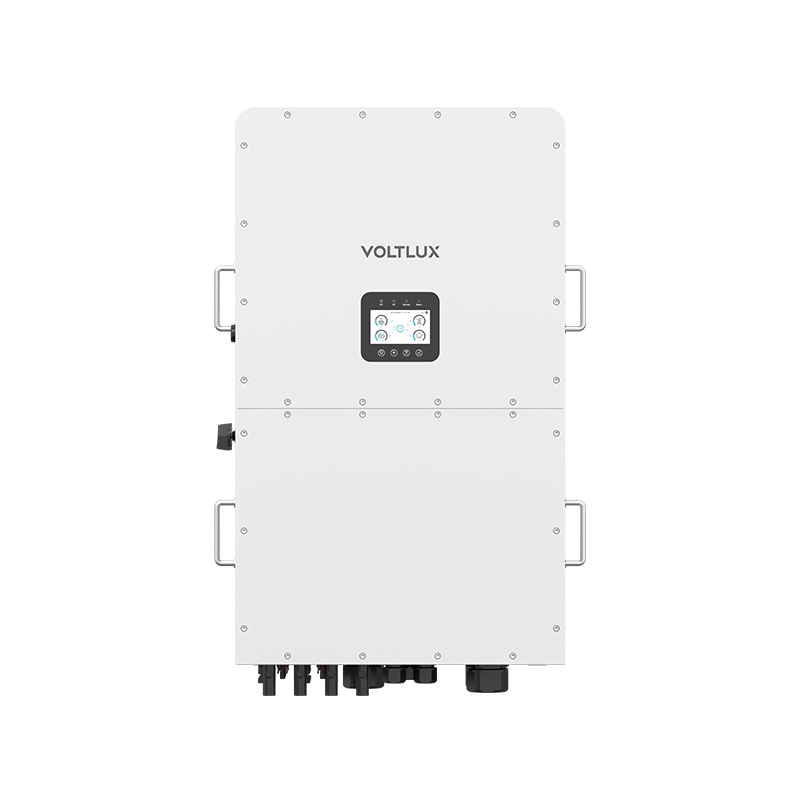

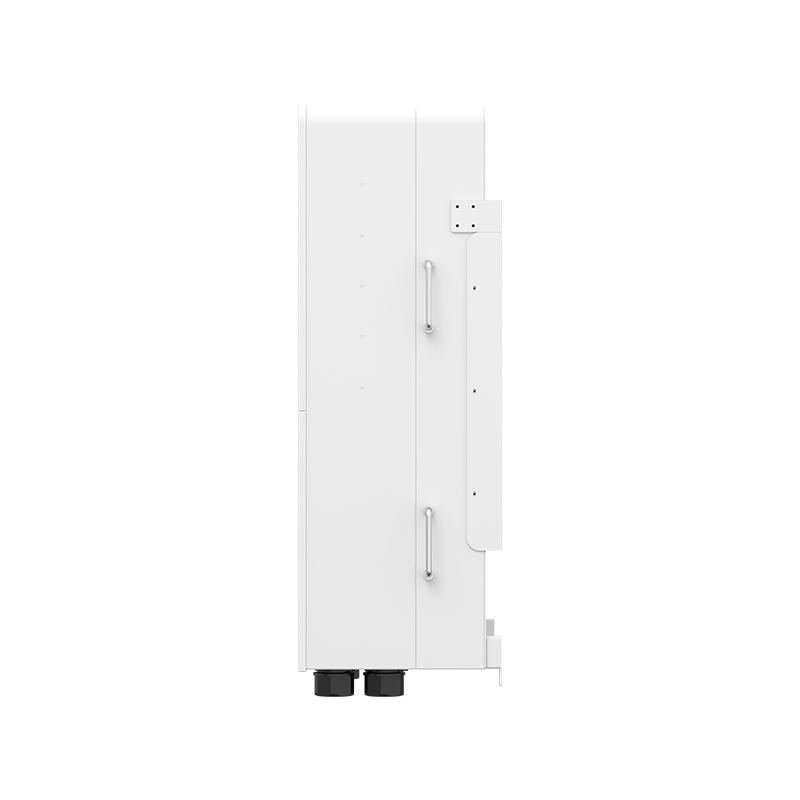

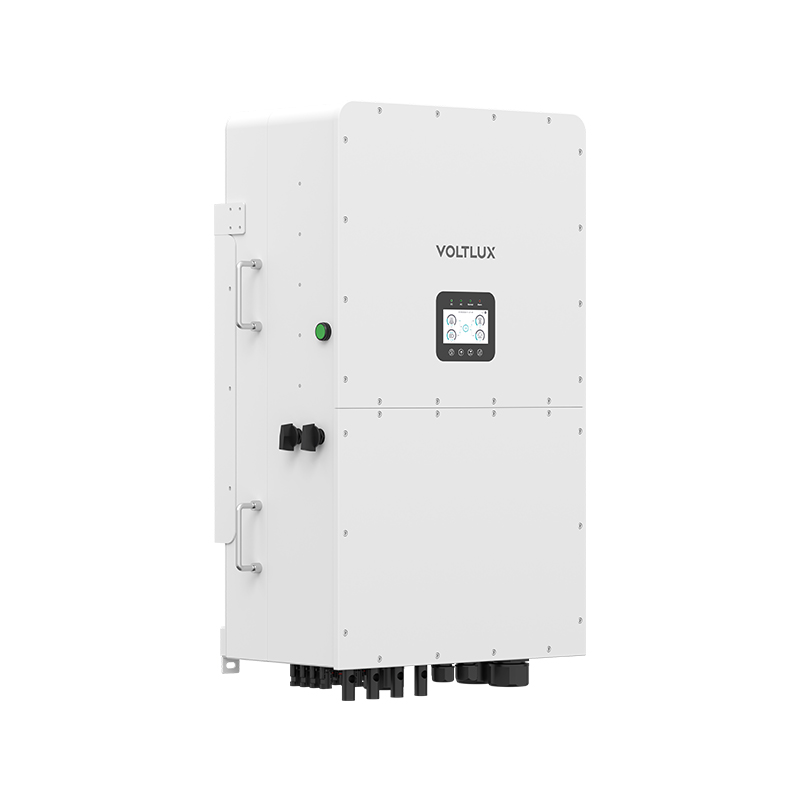

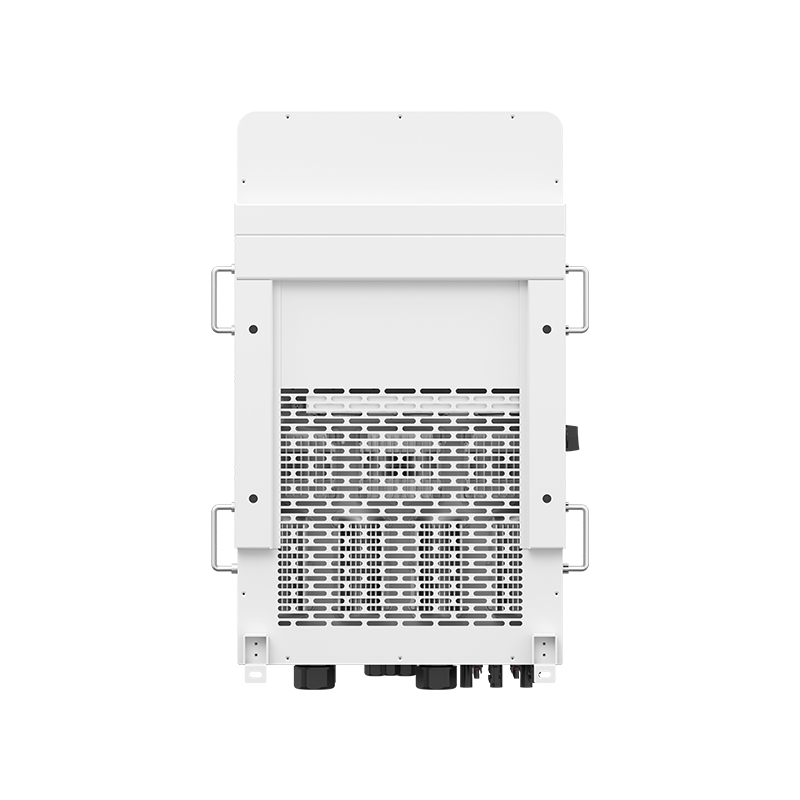

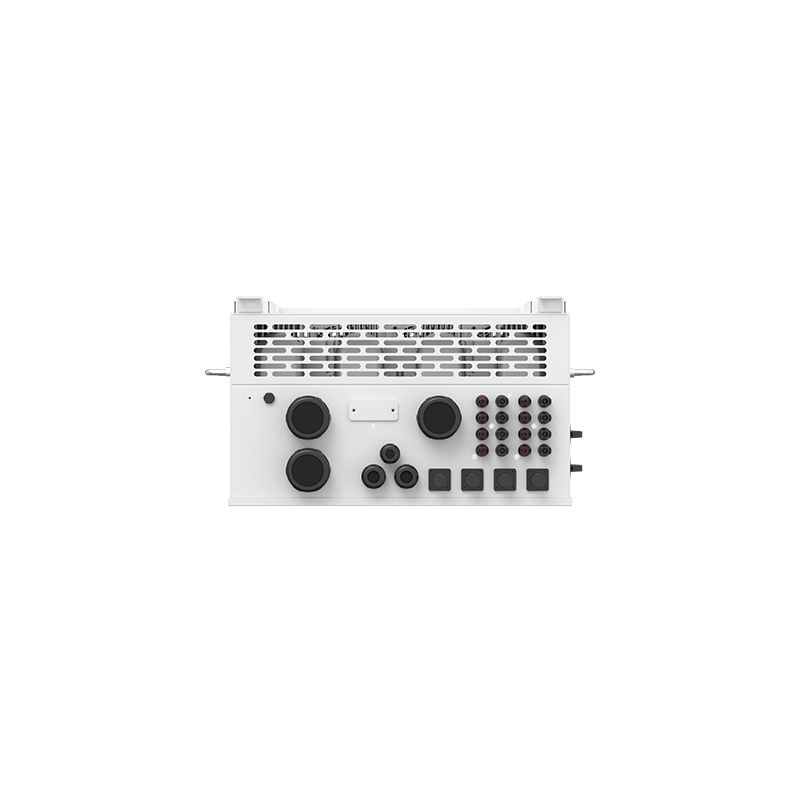

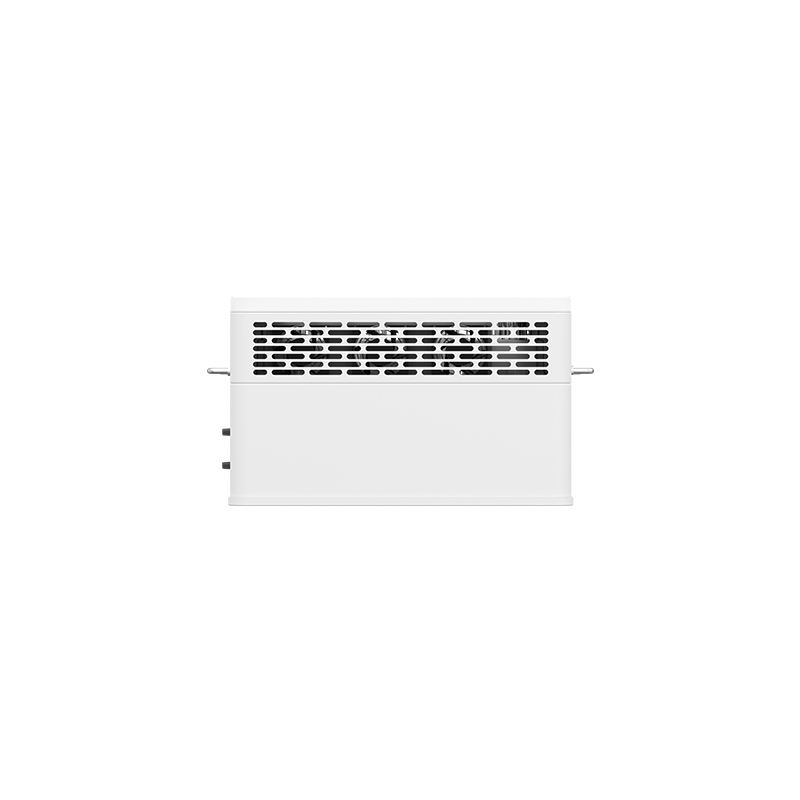

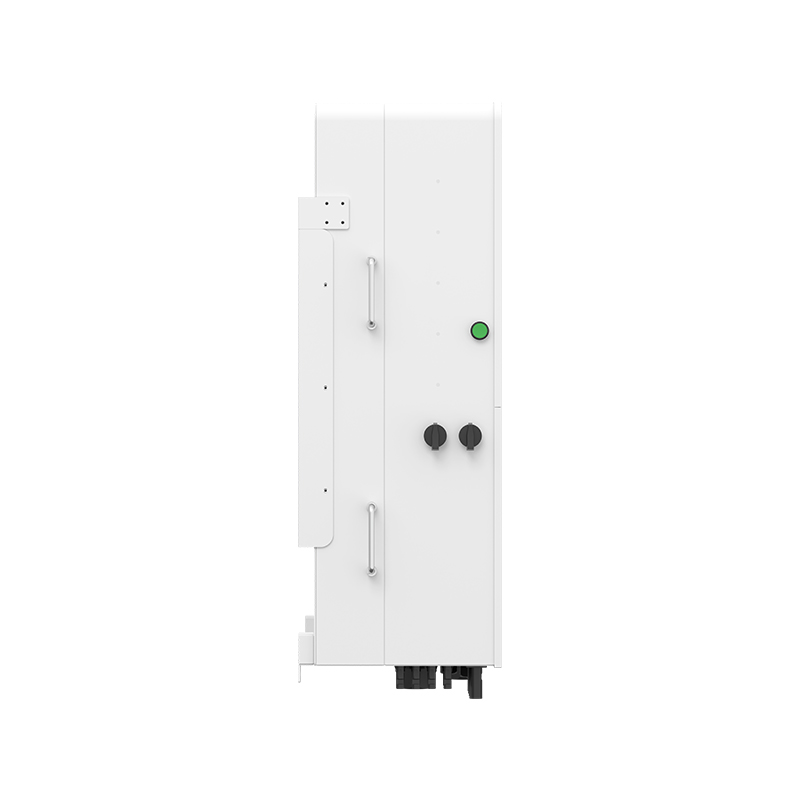

30kW 3 Phase Solar Hybrid Inverter
KEY PRODUCT FEATURES
| ⚫ 6 time periods for battery charging / discharging |
| ⚫ Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel |
| ⚫ Max. Charging/Discharging Current 100A |
| ⚫ High voltage battery, higher efficiency |
| ⚫ Support storing energy from diesel generator |
PV String Input
Max. DC Input Power (W)： 39000
Rated PV Input Voltage (V)： 1000
MPPT Voltage Range (V)： 150-850
Max. DC Input Current(A)： 55+55+55
No.of MPPT Trackers： 3
AC Output
Rated AC Output Power (W)： 30000
Max AC Output Power (W) ： 33000
AC Output Rated Current (A) ： 45.6
Max AC Output Current (A) ： 50.2
Max.Continuous AC Passthrough (A)： 200
AC Output Frequency and Voltage ： 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac
Battery Input
Battery Type： Lithium-ion
Battery Voltage Range (V)： 160-800
Max. Charging Current (A)： 50+50
Max. Discharging Current (A)： 50+50
